Adapt Your Space with Agile Panels by Spacial Concepts®

Agile Panels

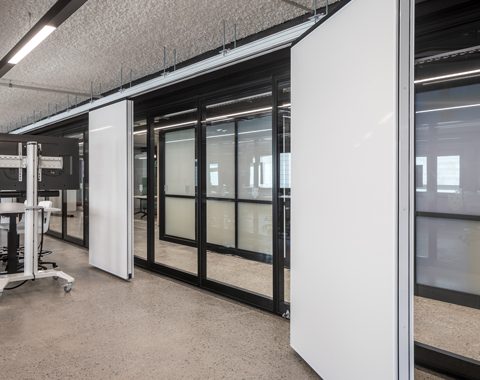

agile panels in a school
Easily create break-out areas within open-plan spaces

Transform open-plan areas into functional, collaborative spaces with our Agile Panels. Whether used as room dividers, writable whiteboards, or creative display screens, Agile Panels are a versatile solution designed to support the way you work, teach, or share ideas.



Agile Panels can be tailored to suit your design and performance needs with a wide range of panel finishes. Panels are manufactured in widths of 600–1200mm and heights up to 3m, with multiple track and trolley options.



From classrooms to offices, Agile Panels offer a bespoke and elegant way to create division, boost productivity, and adapt your space instantly to the activity at hand.



With Spacial Concepts’ expertise in flexible space systems, Agile Panels are more than just partitions. They’re tools for collaboration, focus, and creativity.

Agile Panels

System Details

AGILE PANELS DETAILS

Panel Thickness

100mm

Panel Construction

MDF

Maximum Panel Width

1200mm

Maximum Height

3000mm

Minimum Panel Width

600mm

Track Fixing

Timber, Concrete, or Steel

Application

Internal

Panel Weight (approx.)

32-35kg/m²

Floor Levels

±5mm

Panel Finish Options

Whiteboards, Laminates, Pinboards

Downloads

Technical Drawings

#1 Track – Centre Stack Fixing
Centre Stack Fixed
to Timber
Line drawing for Centre Stack Fixed to Timber

typical section detail

Centre Stack Fixed to Concrete Suspended
line drawing for Centre Stack Fixed to Concrete Suspended

typical section detail

Centre Stack Fixed to Steel Suspended
line drawing for Centre Stack Fixed to Steel Suspended

typical section detail

Centre Stack Fixed to Steel Direct (PFC)
line drawing for Centre Stack Fixed to Steel Direct

typical section detail

#4 Track – Side & Remote Stack Fixing
Side / Remote Stack Fixed to Timber
line drawing for a Side or Remote Stack system Fixed to Timber

typical section detail

Side / Remote Stack Fixed to Concrete Suspended
line drawing for Side or Remote Stack Fixed to Concrete Suspended

typical section detail

Side / Remote Stack Fixed to Steel Suspended
line drawing for Side or Remote Stack Fixed to Steel Suspended

typical section detail

Side / Remote Stack Fixed to Steel Direct (PFC)
line drawings for Side or Remote Stack Fixed to Steel Direct

typical section detail

Seal Options
Retractable Bottom Seals
line drawing of a retractable bottoms seals

typical section detail

Agile Panel CAD files

Request CAD files
