Glass Operable Walls
Value for investment
Glazed acoustic operable walls combine openness and light with flexible functionality, while controling sound.
Perfect for modern workplaces, hospitality venues, and community spaces, Spacial Concepts glazed operable walls maximise natural light while maintaining acoustic integrity. Their sleek design creates visual flow between spaces, adding style and connection without compromising adaptability, performance, or the ease of reconfiguration.
We deliver affordable, Australian-made operable wall solutions supported by decades of expertise. Choose our glass operable walls, for flexibility, performance, and long-term value.
Flexible Space Solutions
Glazed Operable Wall Details
Quality, affordable glazed operable walls.
Panel Width
Maximum Panel Width
1.0m
Minium Panel Width
500mm
Panel Height
Maximum Panel Height
3.0m
Panel Weights
Rw 35
26kg/sqm
Rw 37
26kg/sqm
Rw 39
30kg/sqm
Rw 40
32kg/sqm
Closure Options
Full Height Door with Standard Flush Pull Handles or Lever Handles options
*keylock options available
Construction
Stile Width
82mm
Top Rail
90mm
Bottom Rail
120mm
Acoustic Rating
Rw 35
Rw 37
Rw 39
Rw 40
Tolerances
- Floorshould be level within +/- 5mm across the opening for satisfactory acoustic performance
- Jambs to be plumb +/- 5mm
- Overhead support to suit the weight of the wall systems with no greater than a 5mm deflection
Acoustic Performance You Can Trust
At Spacial Concepts, we know effective acoustic control is about more than just the wall itself. The whole environment needs to be considered.
When selecting the correct sound rating for your project, remember that acoustics are only as strong as their weakest point. Openings such as ceiling voids, air ducts, or gaps in the room can allow sound to escape. For the best results, choose a wall system that not only meets your target rating but also integrates seamlessly with the broader acoustic design of your space.
Our acoustic systems are engineered to reduce sound transmission. The result is a reliable, high-performance glazed operable wall solution that supports collaboration and focus.
Rw Ratings
Rw 35-37
loud speech understandable (standard wall)
Rw 39-40
normal speech audible
Panel stacking systems.
Spacial Concepts utilises a collection of proven tracking and trolley systems. Choosing the most suitable is a specialised process and depends on stacking needs, panel details, and the track layout.
Centre Stack
A simple straight track. Each panel is suspended from a central trolley and typically hinged in pairs. Often closed by a jamb hung pass-door.
This is a simple and cost-effective way to stack away operable wall panels.
The panels fold away on the main run of track to one or both ends. The head track will need to be supported continuously (all along each line of track) by either a concrete slab or a steel beam.
- PROS: Economical, quick to set it up. Beam work is straight forward.
- CONS: Panels have to remain stacked on the main track.
Side Stack
With the Side Stack configuration, single panels are suspended from two carriers at the top corners of each panel. Panels stack with one carrier remaining on the main track and the other in the side track. The panels run along the main line of track and turn perpendicular to the track.
The head track will need to be supported continuously (all along each line of track) by either a concrete slab or a steel beam.
- PROS: Single panels are easier to move. Flexibility to stack to the side of the track and to negotiate junctions.
- CONS: Beam work is needed over the side track.
Spacial Concepts offers two high-performance track systems.
Our premium Number 1 Track and Curves system delivers superior performance and a sleek, refined look – perfect for high-end or architecturally demanding applications.
For a more budget-conscious option without compromising reliability, our Number 4 Track system features high and low rollers that ensure smooth panel diversion.
Remote Stack
Remote Stack panels have omnidirectional carriers to negotiate X, L or T junctions and panels are stacked completely away from the main track, sometimes in a cupboard or recess.
The panels run along the main line of track and turn perpendicular to the track with both trolleys off the centreline of the head track and stacking into a formed pocket or stacking bay.
- PROS: Panels can be stacked away form the main track, useful in complex layouts.
- CONS: Extra tracking and beamwork required. Inexperienced users can get panels out of order on large installations.
The head track will need to be supported continuously (all along each line of track) by either a concrete slab or a steel beam.
Spacial Concepts offers two high-performance track systems.
Our premium Number 1 Track and Curves system delivers superior performance and a sleek, refined look – perfect for high-end or architecturally demanding applications.
For a more budget-conscious option without compromising reliability, our Number 4 Track system features high and low rollers that ensure smooth panel diversion.
Accessories for your glazed operable wall.
Accessory options for your glazed operable wall include:
Magnetic White Boards
Pin Boards
Warranty & Ongoing Support
At Spacial Concepts, we’re proud to deliver glazed operable wall systems that combine strength, style, and reliability. Every installation is backed by our standard 2-year warranty, giving you confidence that your investment is protected.
But our commitment doesn’t stop at installation. This warranty is a reflection of our dedication to long-term performance and customer satisfaction, ensuring your walls continue to deliver value well into the future.
With Spacial Concepts, your journey doesn’t end with delivery—it begins a lasting partnership built on support, reliability, and trust.
Downloads
Technical Drawings
#1 Track – Centre Stack Fixing
#4 Track – Side & Remote Stack Fixing
Cupboard Details for Glazed Operable Walls
Typical Details
Seal Options

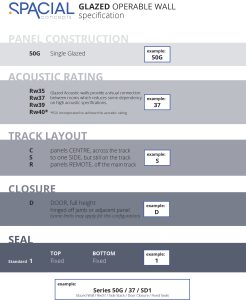

GLAZED OPERABLE WALL DETAILS | |
Panel Thickness | 100mm |
Panel Construction | Glass |
Maximum Panel Width | 1.0m |
Maximum Height | 3.0m |
Minimum Panel Width | 500mm |
Frame Width | 10mm |
Acoustic Rating Rw | Rw 35, Rw 37, Rw 39, Rw 40 |
Stacking Configuration | Centre Stack, Side Stack, Remote Stack |
Floor Levels | ±5mm |
Panel Finish Options | Pinboards, Whiteboards |
CAD files for glazed operable walls
Request CAD files
Glazed Operable Wall Projects

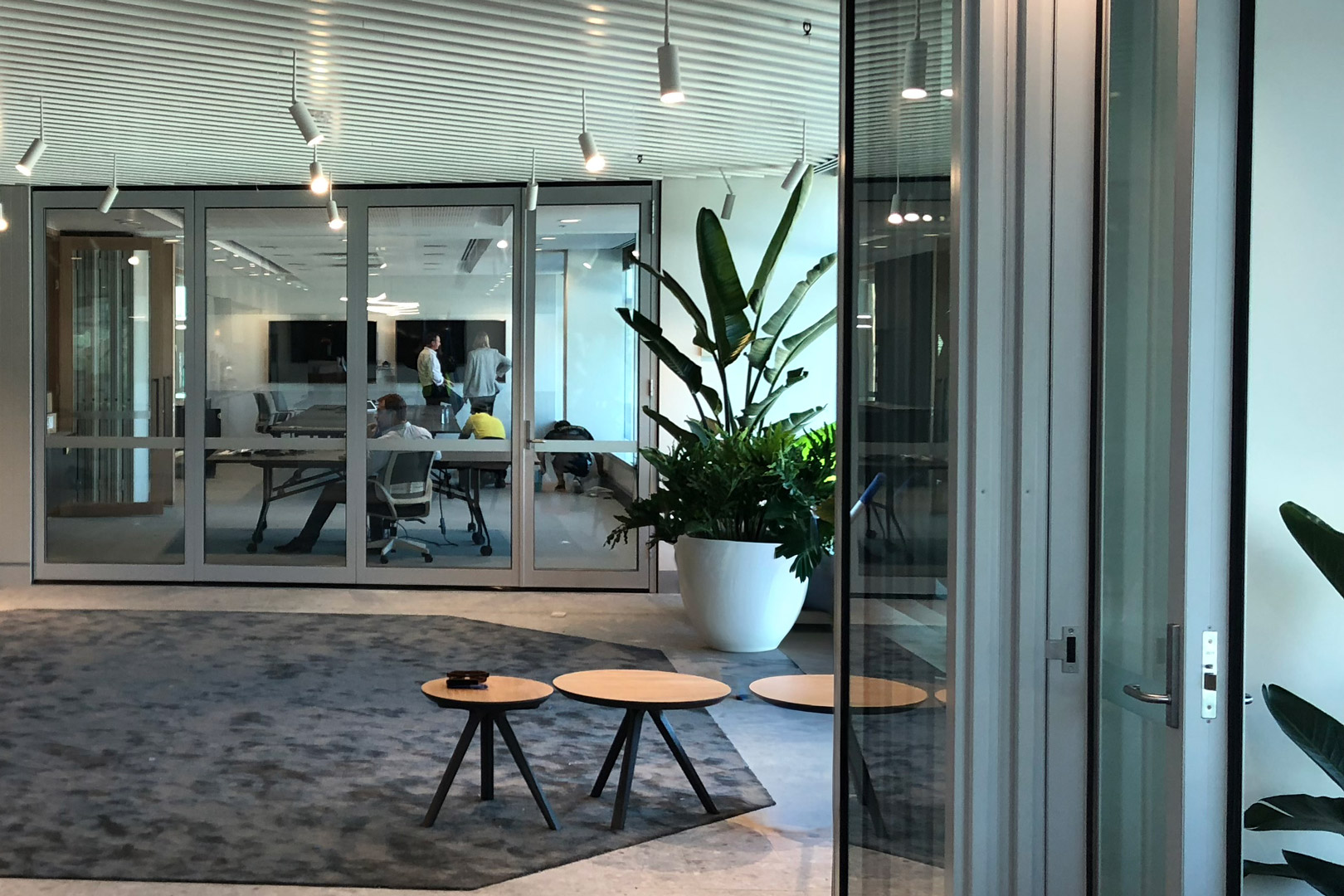

RPS Brisbane
Commercial, Glazed Operable Wall, Project, Solid Operable Wall

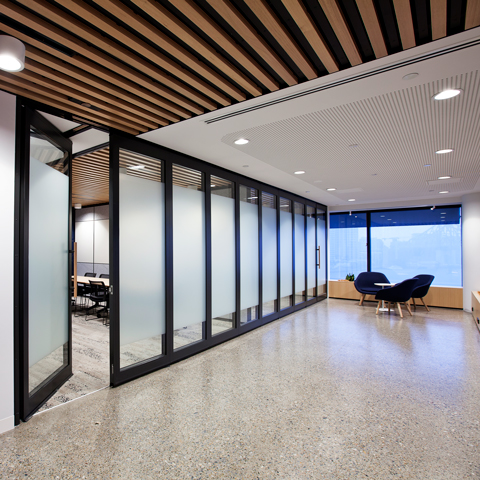

Energy Super
